Flat seals
Reliable sealing solutions: Flat gaskets for electrical assemblies and housings with low tooling costs and fast delivery times
![](https://siegel-dichtungen.de/wp-content/uploads/2024/04/Klemmkastendichtungen-Produzent-Stanzartikel-Siegel-Gummifabrik-Kunststofffabrik-76-1024x683.jpg)
Variety & quality of the sealing gaskets

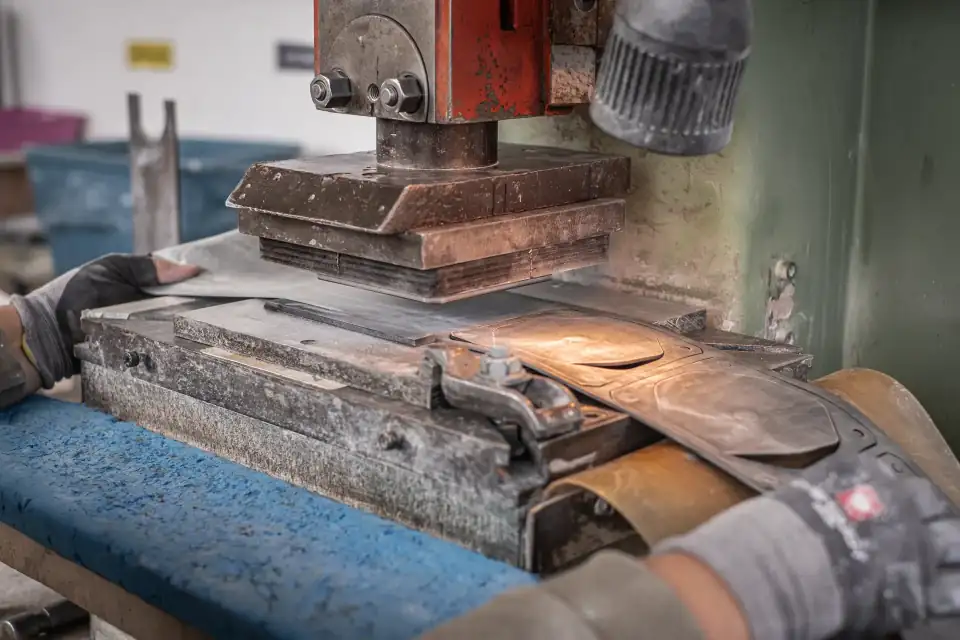

Flat seals, punched from sheet material, rolls and sheets – for numerous applications in the electrical industry, mechanical engineering, the sanitary sector, the automotive industry and beyond. Our flat gaskets provide a reliable seal and are available in various materials and sizes to meet your specific requirements.
We manufacture according to drawings or samples or work with you to find the right design for your needs.
Made of elastomers, foam rubber, cellular rubber, silicone, Viton and various plastics in accordance with different standards and approvals – also self-adhesive on one side to aid assembly or with fabric inserts.
These materials offer different properties such as resistance to chemicals, temperatures and weathering in order to meet the requirements of a wide range of applications.
We are also happy to advise you on finding the ideal seal and suitable material for your specific requirements.
Discover our wide range of flat gaskets and benefit from our many years of experience and expertise in the field of sealing technology.
Product Specification
Please note that product specifications may vary depending on the material option. Contact us for more information or specific requirements.
Material
The materials processed include NK, SBR, NBR, CR, EPDM, H-NBR, PUR... foamed materials such as cellular rubber (closed-cell) and sponge rubber (open-pore), silicone and Viton FPM/FKM, various foams and plastics.
For further details, please refer to our material overview
Temperature resistance
Resistant in a wide temperature range from -60°C to > +200°C for use in various environments, countries and applications.
Standards and approvals
On request, the seals can also be produced in accordance with various approvals, e.g:
- UL94 V0- V1- V2 (regulation for the classification of flammability)
- KTW, EN16421- formerly W270 (drinking water)
- DVGW (gas/water)
- FDA, BfR (food)
In the automotive sector according to:
- VW2.8.1...
- BMW 602...
- DBL 55...
Tool costs
Depending on dimensions and geometry, manufactured from low-cost steel strip cuts to keep costs to a minimum
Fabric inserts
On request, also available with one or more fabric inserts to increase the stability and compressive strength of the flat seals
Self-adhesive film
Also self-adhesive on one side for better mounting assistance, equipped with a cover paper for quick mounting or a punched tab for easy removal of the film
Packaging and delivery form
Depending on their geometry and properties, the flat gaskets can also be supplied neatly stacked in a cardboard box. Also with cardboard layers to prevent slipping during transportation
